Ermenek Tol Medresse

Ermenek is a town and district of Karaman Province in the Mediterranean region of Turkey.

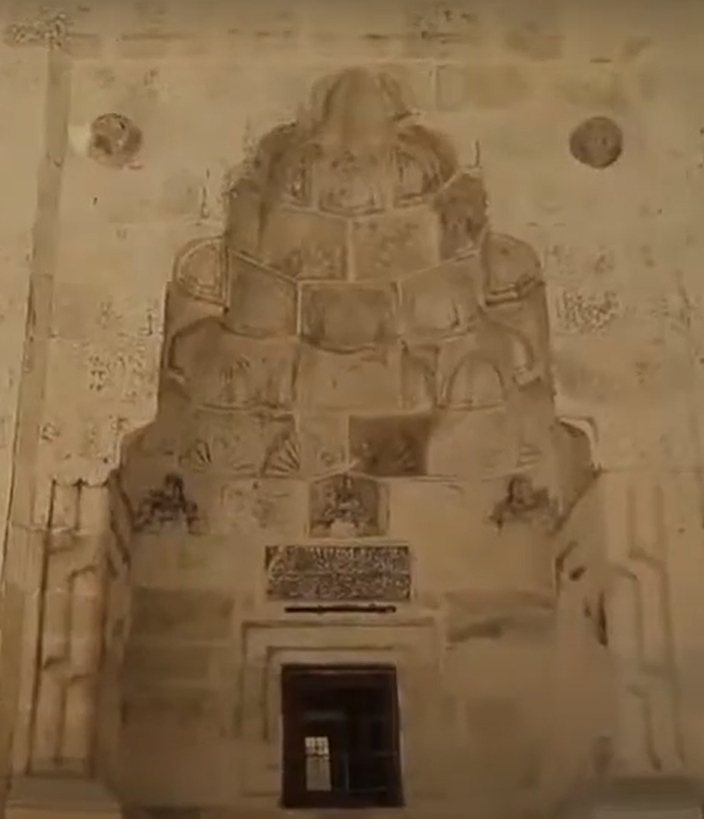

In Ermenek, you will find the Tol Medresse. This muqarnas follows the rule "back on curve". Odekan classified this muqarnas as type 2A. Its module consists of three concentric circles. My Instagram posts tells you more.

Instagram: Square root of two

Check the animation to find out the composition of this muqarnas.
STL animation




Ermenek


Muqarnas

3

3

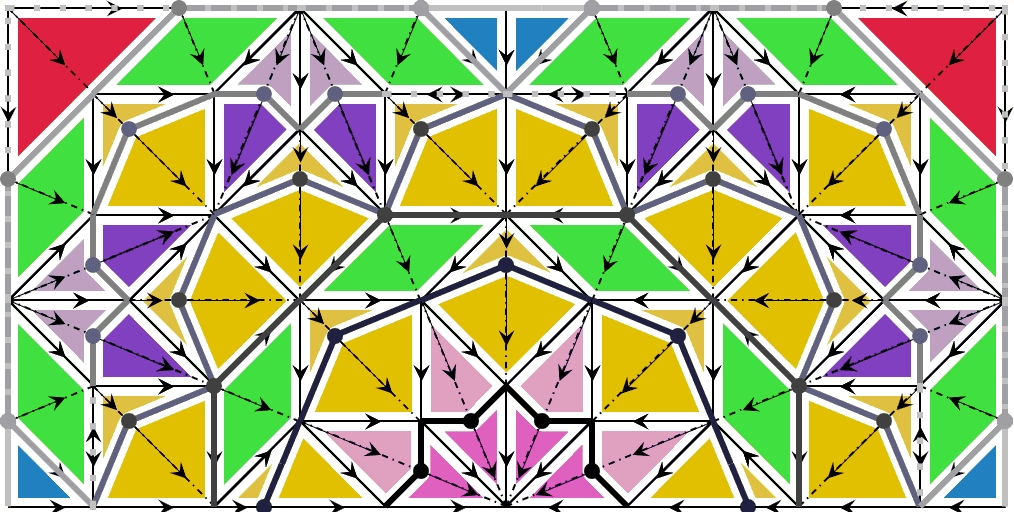

2D

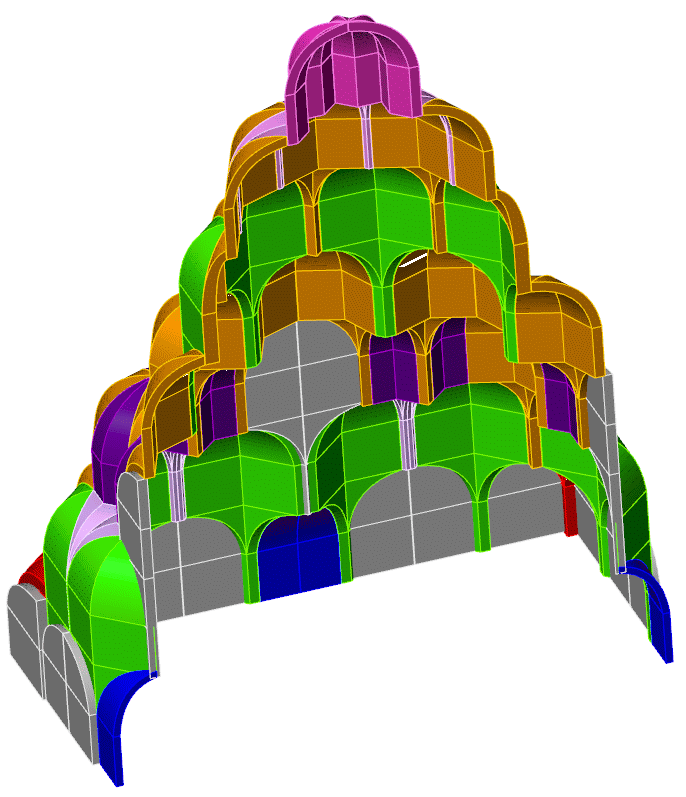

3D

3

3


Coding

M M M M
D N D N D N D N D
J B J B J B J B J
D D D D D D D D
J C J C D C J C J J C J C D C J C J
B I I B J B I I B B I I B J B I I B
A E E A E E A




STL Animation



Instagram

One of my Instagram posts deals with the Ermenek Tol Medresse.

Instagram: Ermenek Tol Medresse
